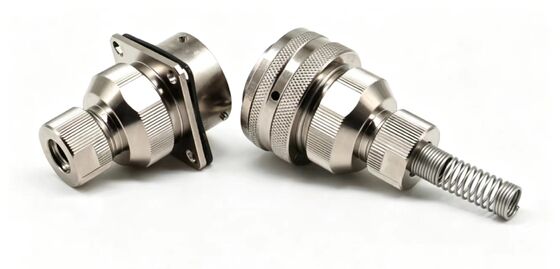

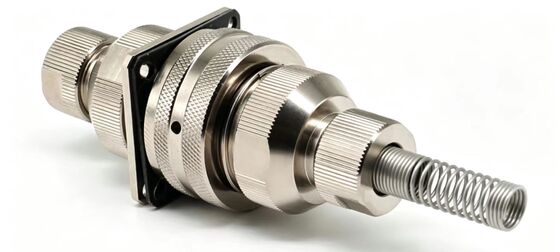

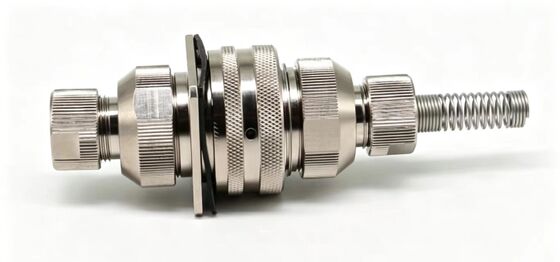

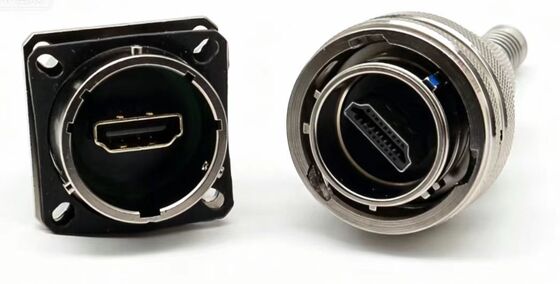

YW110F06 HDMI Servo Motor Connector with 1000V Voltage Rating Panel Mount and Crimp Solder Termination

Product Description:

The Servo Motor Connectors are essential components designed to ensure reliable and efficient connections in a wide range of servo motor applications, including AC Servo Drive systems and High Torque DC Servo Motors. Engineered with precision and durability in mind, these connectors provide optimal electrical performance and mechanical stability, making them an ideal choice for demanding industrial environments.

One of the standout features of these Servo Motor Connectors is their versatile mounting options. They are available in both Panel Mount and Cable Mount configurations, allowing for flexible installation based on specific application requirements. Whether you need to secure the connector directly onto a control panel or integrate it seamlessly with cable assemblies, these connectors offer the adaptability needed for various setups within AC Servo Drive systems.

The termination types of these connectors are designed to accommodate different wiring preferences and ensure robust electrical connections. Customers can choose between Crimp and Solder termination methods. Crimp termination offers a quick and reliable way to attach wires, providing excellent mechanical strength and electrical conductivity, which is crucial for maintaining performance in High Torque DC Servo Motor applications. On the other hand, solder termination delivers a secure and permanent connection, ideal for situations where vibration resistance and long-term stability are paramount.

Insulation resistance is a critical factor in ensuring the safety and efficiency of servo motor systems. These connectors offer insulation resistance suitable for both 6PIN and 7PIN configurations, catering to various wiring schemes used in AC Servo Drive units. This high insulation resistance minimizes the risk of short circuits and electrical leakage, thereby enhancing the overall reliability and lifespan of the servo motor setup.

When it comes to current handling capabilities, the Servo Motor Connectors are rated to support currents ranging from 1A to 10A and beyond, depending on the specific model and application. This wide current rating spectrum makes them suitable for a diverse array of servo motor drives, including high-power AC Servo Drive systems and High Torque DC Servo Motors that demand substantial current flow for optimal performance. By accommodating different current requirements, these connectors ensure efficient power transmission and signal integrity under various operational conditions.

Contact plating is another critical attribute that contributes to the performance and durability of these connectors. They feature options with Silver-plated contacts and Gold-plated pins. Silver plating is known for its excellent electrical conductivity and cost-effectiveness, making it a popular choice for general-purpose servo motor connections. Alternatively, Gold plating provides superior corrosion resistance and reliable low-level signal transmission, which is particularly beneficial in harsh operating environments or applications requiring high precision, such as advanced AC Servo Drive systems.

In summary, the Servo Motor Connectors combine flexibility, reliability, and high performance, making them indispensable components in the realm of servo motor technology. Their panel mount and cable mount options provide installation versatility, while crimp and solder termination methods cater to various wiring needs. With insulation resistance tailored for 6PIN and 7PIN configurations, they ensure safe and efficient operation. Supporting current ratings from 1A to 10A and equipped with either silver or gold-plated contacts, these connectors are well-suited for both standard and high-demand applications, including AC Servo Drive and High Torque DC Servo Motor systems. Choosing these connectors means investing in quality, durability, and optimal electrical performance for your servo motor solutions.

Features:

• Product Name: Servo Motor Connectors
• Gender Options: 8PIN, 4PIN, 6PIN, 12PIN, 17PIN
• Number of Contacts: 8PIN, 4PIN, 6PIN, 12PIN, 17PIN
• Current Rating: 1A, 10A, and higher
• Operating Temperature Range: -40℃ to +105℃
• Application: Suitable for Industrial Automation
• Compatible with AC Servo Motor Driver systems
• Ideal for High Torque DC Servo Motor connections
• Supports Hydraulic Brake Motors integration

Technical Parameters:

Applications:

The NO MARK 6FX2003 Servo Motor Connectors are designed to provide reliable and efficient connectivity solutions for a wide range of industrial automation applications. Manufactured in China and certified with CE and ISO9001 standards, these connectors meet stringent quality requirements, making them ideal for use in demanding environments. With a robust construction combining metal and plastic materials, they can operate smoothly within a temperature range of -40℃ to +105℃, ensuring consistent performance even under harsh conditions.

These servo motor connectors are specifically engineered to support DC Servo Motor Drive systems as well as AC Servo Motor Driver setups, offering versatility across different types of servo motor control applications. Their ability to accommodate wire gauges from 18 to 24 AWG or even larger AWG 3-12 diameters makes them compatible with a variety of cable thicknesses, providing flexibility in installation and wiring configurations. The connectors are rated for a voltage of up to 1000V, guaranteeing safe and stable electrical connections in high-voltage servo motor environments.

Ideal application scenarios for NO MARK’s 6FX2003 Servo Motor Connectors include automation machinery, robotics, CNC equipment, and precision motor control systems where reliable signal and power transmission are critical. These connectors facilitate seamless communication between AC Servo Motor Drivers and the motors they control, ensuring smooth operation and precise control. In addition, they are widely used in factory automation lines, packaging machines, and conveyor systems where high-speed, high-accuracy servo motor drives are essential.

With a strong supply ability of 1000 pieces per day and a minimum order quantity of 100 units, these connectors are suitable for large-scale industrial procurement. The packaging in sturdy carton boxes ensures safe delivery within 1-3 working days, while flexible payment terms including T/T and PayPal accommodate various purchasing preferences. Whether upgrading existing servo motor drive systems or designing new AC Servo Motor Driver installations, the NO MARK 6FX2003 connectors provide a durable and efficient solution to meet professional industrial demands.

Customization:

Our Servo Motor Connectors, model number 6FX2003, are designed to meet the highest standards of quality and performance. Manufactured in China under strict quality controls, these connectors are CE and ISO9001 certified, ensuring reliability in industrial automation applications.

We offer product customization services to tailor the connectors to your specific needs. With a minimum order quantity of 100 units and a supply ability of 1000 pcs/day, we can efficiently handle both small and large orders. Each connector features a termination type of Crimp or Solder and is made from durable metal and plastic materials, providing excellent voltage rating up to 1000V.

Our Servo Motor Connectors are ideal for use with Electro Hydraulic Servo systems and AC Servo Drive applications, ensuring seamless integration and optimal performance. Packaging is done carefully in carton boxes to protect the products during shipping, with a delivery time of 1-3 working days.

We accept multiple payment terms including T/T and PayPal for your convenience. Although the price is not available here, please contact us for a detailed quotation and further customization options to suit your Electro Hydraulic Servo or AC Servo Drive requirements.
