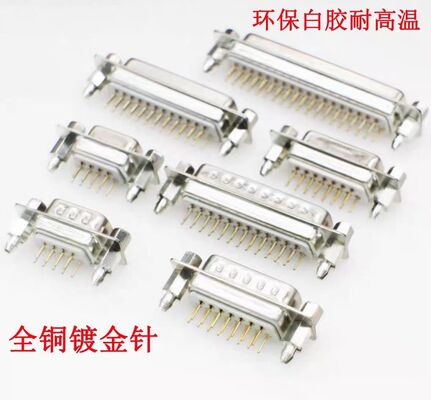

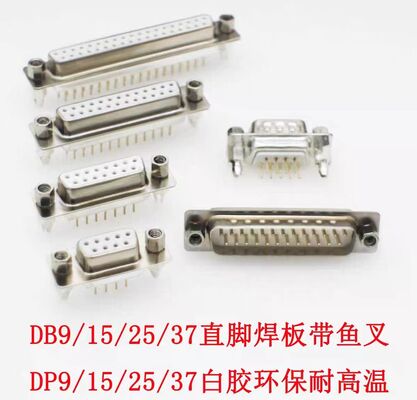

DP/DB9/15/25/37/44/50/62/78 Fork Soldering Board Connector Male Female 180°

Product Description:

The Servo Motor Connectors are precision-engineered components designed to provide reliable and efficient connectivity for various types of servo motors used in industrial automation. Crafted from a combination of high-quality metal and durable plastic materials, these connectors ensure longevity, robustness, and excellent performance even in demanding operational environments. Their sturdy construction makes them an ideal choice for applications requiring consistent electrical contact and mechanical stability.

Available in multiple configurations, the Servo Motor Connectors come with a range of contact options including 4-pin, 6-pin, 8-pin, 12-pin, and 17-pin variants. This versatility allows seamless compatibility with a wide spectrum of servo motor systems, catering to the specific wiring and signal transmission requirements of different setups. Whether you are working with a High Torque DC Servo Motor or an AC Brushless Servo Motor, these connectors provide the necessary interface to ensure smooth and accurate motor control.

The connectors feature contact plating options such as silver and gold-plated pins, which enhance conductivity and minimize signal loss. The gold-plated pins, in particular, offer superior corrosion resistance and reliable low-resistance connections, making them especially suitable for high-precision applications and environments with potential exposure to moisture or contaminants. The silver contacts provide excellent conductivity and are well-suited for general industrial uses where optimal electrical performance is essential.

Designed to accommodate wire gauges ranging from 18 to 24 AWG or even larger, with diameters spanning AWG 3-12, these connectors are adaptable to various cable sizes and types. This flexibility ensures that the connectors can handle different current loads and signal transmission requirements, making them compatible with a broad range of servo motor drivers and control systems. Using the appropriate wire gauge combined with these connectors guarantees stable performance and reduces the risk of electrical faults.

In industrial automation, precise control and reliable communication between motors and drivers are crucial. The Servo Motor Connectors play a vital role in establishing a secure and efficient link between the AC Servo Motor Driver and the motors it controls. By enabling stable electrical connections and minimizing interference, these connectors contribute to the overall efficiency and accuracy of servo motor systems.

Whether you are implementing a High Torque DC Servo Motor system for heavy-duty applications or integrating an AC Brushless Servo Motor for high-speed, high-efficiency tasks, these connectors provide the essential interface required for optimal operation. Their robust design combined with versatile pin configurations and superior contact plating ensures they can meet the rigorous demands of modern industrial automation setups.

In summary, the Servo Motor Connectors are indispensable components designed to support advanced servo motor technologies. Their high-quality metal and plastic construction, multiple pin configurations, superior contact plating options, and broad wire gauge compatibility make them the perfect choice for ensuring reliable connectivity in industrial automation environments. These connectors are engineered to work seamlessly with High Torque DC Servo Motors, AC Brushless Servo Motors, and AC Servo Motor Drivers, ultimately enhancing system performance, reliability, and longevity.

Features:

• Product Name: Servo Motor Connectors
• Connector Type: Servo Motor
• Number of Contacts: 4PIN, 6PIN, 8PIN, 12PIN, 17PIN
• Material: Metal and Plastic
• Termination Type: Crimp and Solder
• Wire Gauge Compatibility: 18-24 AWG or More, AWG 3-12 Diameter
• Designed for use with High Torque DC Servo Motor applications
• Compatible with DC Servo Motor Drive systems
• Ensures reliable connections for High Torque DC Servo Motor performance

Technical Parameters:

Applications:

The NO MARK 6FX2003 Servo Motor Connectors are specifically designed to meet the high demands of various servo motor applications, making them an ideal choice for use with High Torque DC Servo Motor systems. These connectors ensure reliable and efficient electrical connections between the servo motor and the DC Servo Motor Drive, facilitating smooth and precise motor control. Their robust construction, combining metal and plastic materials, offers excellent durability and resistance to wear, which is essential in industrial environments where servo motors operate under continuous and demanding conditions.

In manufacturing plants, these connectors are widely used in automation systems that rely on hydraulic brake motors to provide controlled stopping power. The 6FX2003 connectors support the high voltage rating of 1000V, ensuring safe and stable power transmission in hydraulic brake motor control circuits. Their crimp and solder termination options provide flexibility in installation, accommodating various wiring preferences and enhancing the overall reliability of the motor control system.

Certified with CE and ISO9001 standards, the NO MARK 6FX2003 connectors guarantee compliance with international quality and safety requirements, making them suitable for global industrial applications. The product is manufactured in China with a supply capability of 1000 pieces per day, ensuring consistent availability for large-scale projects. Packaging in carton boxes ensures protection during shipping, and with a delivery time of just 1-3 working days, these connectors can be quickly integrated into production lines.

These servo motor connectors are perfect for use in robotics, CNC machinery, and automated assembly lines where precise motor control is crucial. They are also applicable in electric vehicles and aerospace sectors where High Torque DC Servo Motors and hydraulic brake motors are commonly employed. With payment terms including T/T and PayPal, and a minimum order quantity of 100 pieces, NO MARK offers a convenient and reliable supply solution for manufacturers and engineers looking to optimize their servo motor drive systems.

Customization:

Our Servo Motor Connectors, model number 6FX2003, are designed with versatility and high performance in mind, suitable for Electro Hydraulic Servo applications as well as AC Servo Drive and AC Servo Motor Driver systems. Manufactured in China under strict quality control, these connectors come with CE and ISO9001 certifications, ensuring reliability and safety.

We offer customization services to meet your specific requirements, including various gender configurations such as 8pin, 4PIN, 6PIN, 12PIN, and 17PIN. The connectors support current ratings ranging from 1A to 10A and beyond, accommodating wire gauges from 18-24 AWG or larger, including AWG 3-12 diameter options. They are designed to operate efficiently within a temperature range of -40℃ to +105℃, making them ideal for demanding servo motor environments.

The mounting type can be tailored to your needs with options for panel mount or cable mount designs. Our minimum order quantity is 100 pieces, with a supply ability of up to 1000 pieces per day to ensure timely delivery. Packaging is handled securely in carton boxes to protect the products during shipping.

We guarantee fast delivery within 1-3 working days and offer flexible payment terms including T/T and PayPal. Partner with us for your Electro Hydraulic Servo, AC Servo Drive, and AC Servo Motor Driver connector needs, and benefit from high-quality, customizable solutions designed to enhance your servo motor systems.

Support and Services:

Our Servo Motor Connectors are designed to provide reliable and secure connections for servo motor systems, ensuring optimal performance and durability in various industrial applications.

Technical Support for our Servo Motor Connectors includes assistance with product selection, installation guidance, troubleshooting, and maintenance tips to maximize the lifespan and efficiency of your servo motor connections.

We offer comprehensive services such as connector customization, compatibility verification with your servo motor models, and on-site technical consultation to address specific application requirements.

Our support team is equipped to help you resolve any issues related to connector performance, including signal integrity, environmental resistance, and mechanical stability under operational stresses.

For optimal results, we recommend regular inspection and proper handling of connectors during assembly and maintenance to prevent damage and ensure consistent connectivity.

Additional services include training sessions on best practices for connector usage and integration, as well as providing detailed technical documentation and product updates to keep your systems running smoothly.
